These valves are utilized in pneumatic conveying systems for the transfer of materials to multiple silos. The automation system automatically directs the line towards the selected silo. The powder material passing through these separators is transported as part of a sealed closed circuit. This type of separator valve is of great importance, as material transfer occurs at high speed sand high pressures. The transportation of abrasive materials can cause abrasions, punctures, and sealing problems on the line. It is therefore crucial that the isolating valves operate correctly and reliably.

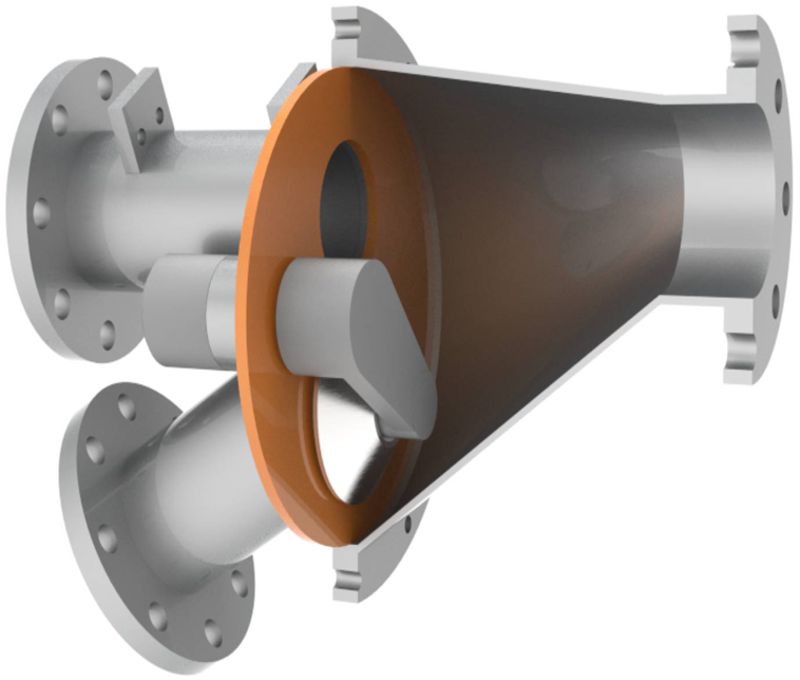

Our TDV-DS type two-way separator valves with rotating discs are produced as a special design and are highly effective in preventing wear and punctures at high speeds. The body material of these valves is specifically designed for optimal performance in the intended process. Furthermore, the inner plate and rotating disc in the body are both replaceable. These components can be disassembled and mounted with minimal effort. When the inner plate and rotating disc have reached the end of their useful life, they can be replaced with a new one. The replaceable structures of these valves ensure a very long lifespan. This product is the optimal solution for the transportation of corrosive and chemical materials.



• Production from DN50 to DN250 Diameter

• Body structure carbon steel or stainless steel

• Replaceable rotary disc and fixed table

• Rotation angle Standard 30° or 45°

• Working pressure 1_Bar...6_Bar,

• Test pressure 8 Bar.

• DIN/ANSI norm - PN16 Pressure class

• Complete sealing for dust and gas.

• The drive system is electric or pneumatic

• Direction information On-Off Switch
